Furukawa Viaduct

Bridge Type, Construction Method, etc
Precast segmental bridges
Construction site
Mie Prefecture
Completion date

Name Furukawa Viaduct
Ordered by NEXCO Central Nippon No. 2 Meishin Expressway
Awards Japan Society of Civil Engineers, Tanaka Award; Japan Prestressed Concrete Institute Award for Outstanding Structures; Japan Prestressed Concrete Engineering Association Award
Construction site Mie Prefecture
Completed 1999

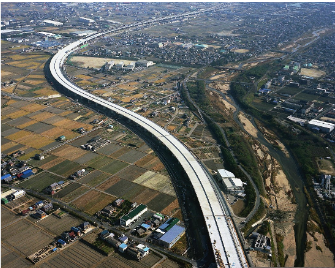

Bridge length 1,475 m
Effective width 15.5 m
Construction outline (9+9+13+10) span continuous girder bridge

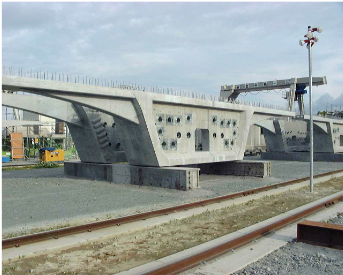

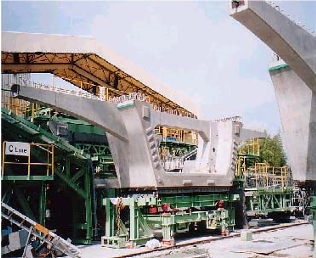

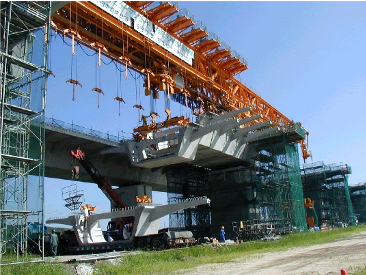

The main girders have a composite structure comprised of factory-made U-shaped (open cross-section) segments and PC slabs, and it is the world’s first structure to be erected via a span-by-span construction method utilizing open cross-section precast segments.
