FC slab method
1. Overview

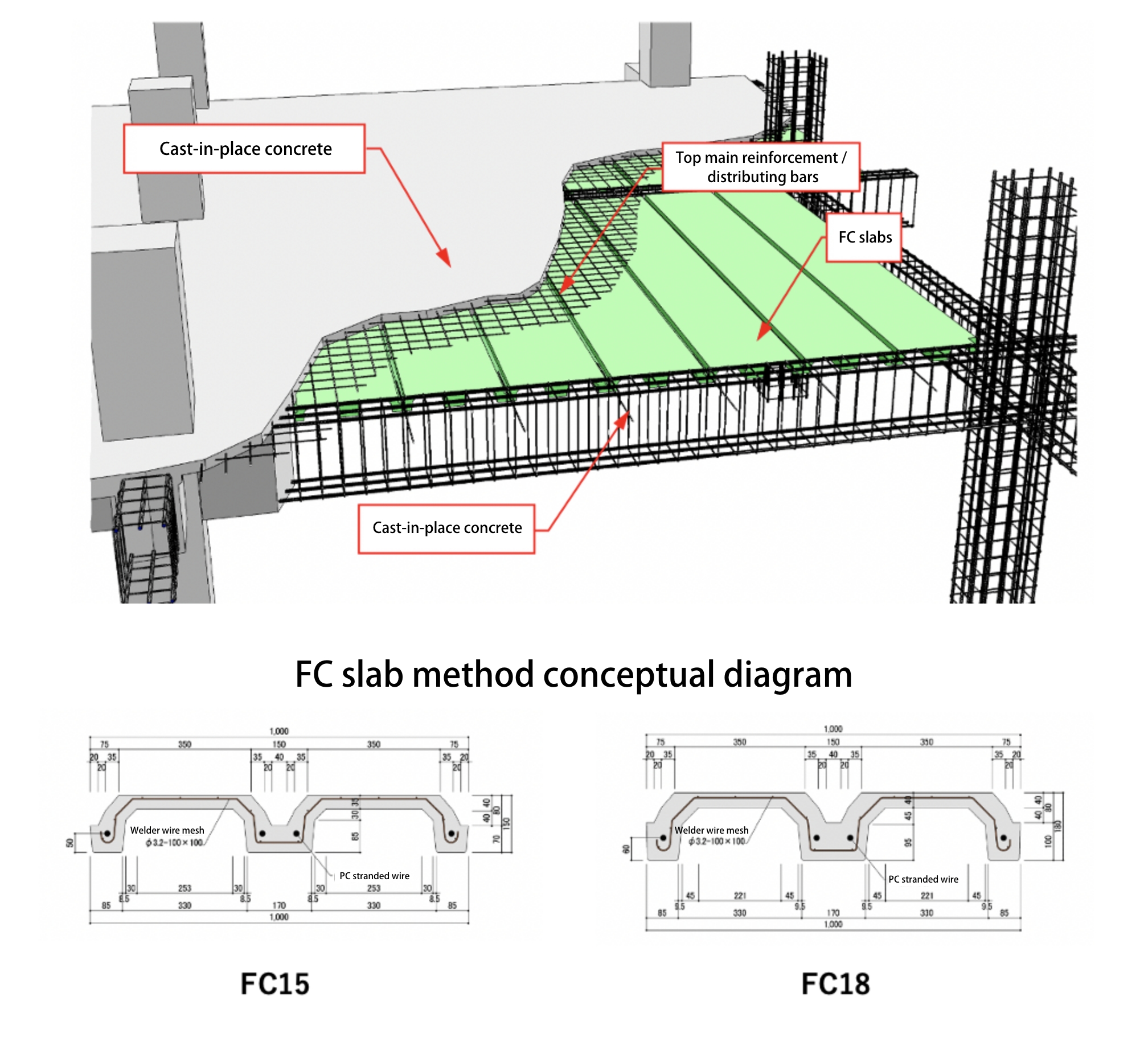

FC slabs are precast concrete slabs with a channel-shaped cross section, and prestress is introduced into four PC steel members installed in the ribbed section.
The FC slab method is a half-precast composite floor slab construction method which involves installing top reinforcement over FC slabs installed between beams and then pouring cast-in-place concrete to integrate everything together. The rough top surface integrates with the cast-in-place concrete to create a strong, load-resistant, composite slab.
FC slabs can be installed without the use of shoring, thereby reducing the amount of on-site work involved.
2. Key Features
- Long span construction is possible without the need for shoring.
- Because prestress is introduced, there is little long-term flexure and cracks do not form.
- Allows for less rebar and concrete to be used.
- Thin-walled sections can be easily notched or drilled with a concrete cutter.
- Offers sufficient resilience under excessive loads.

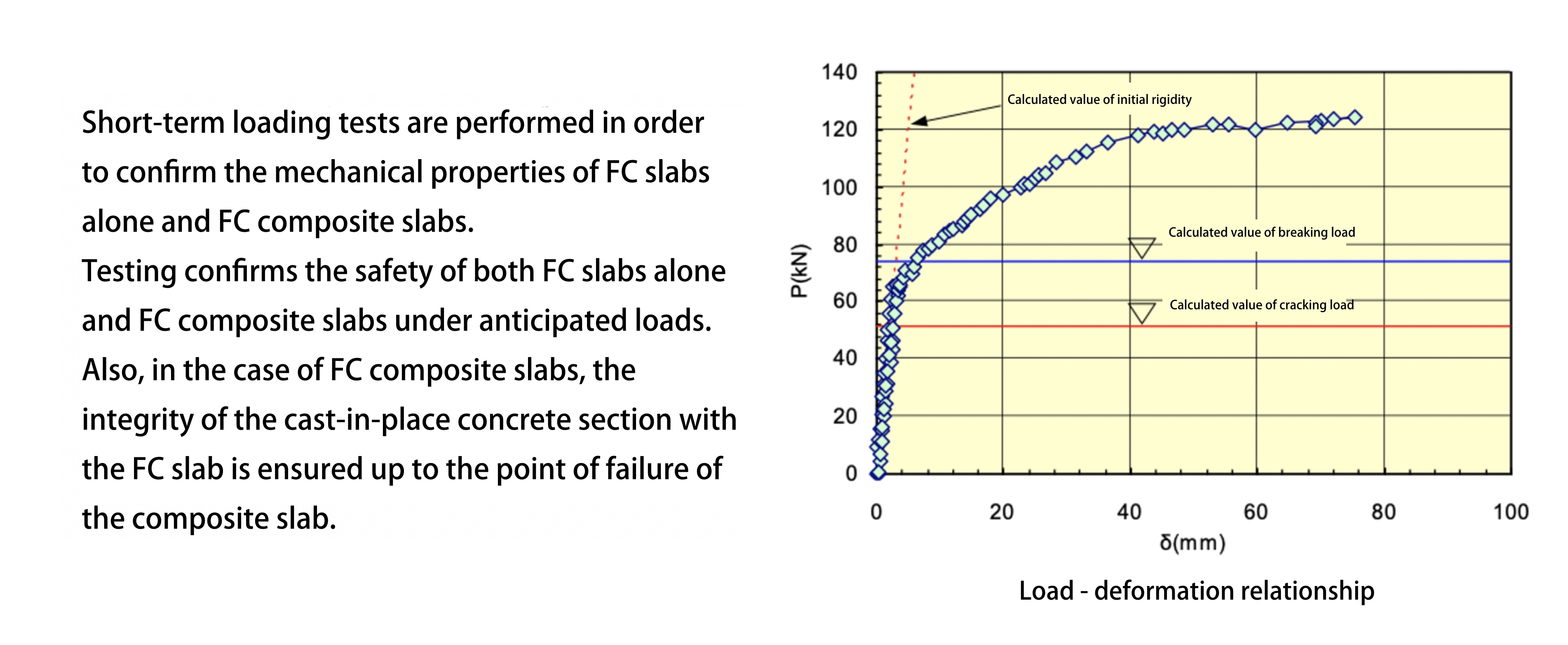

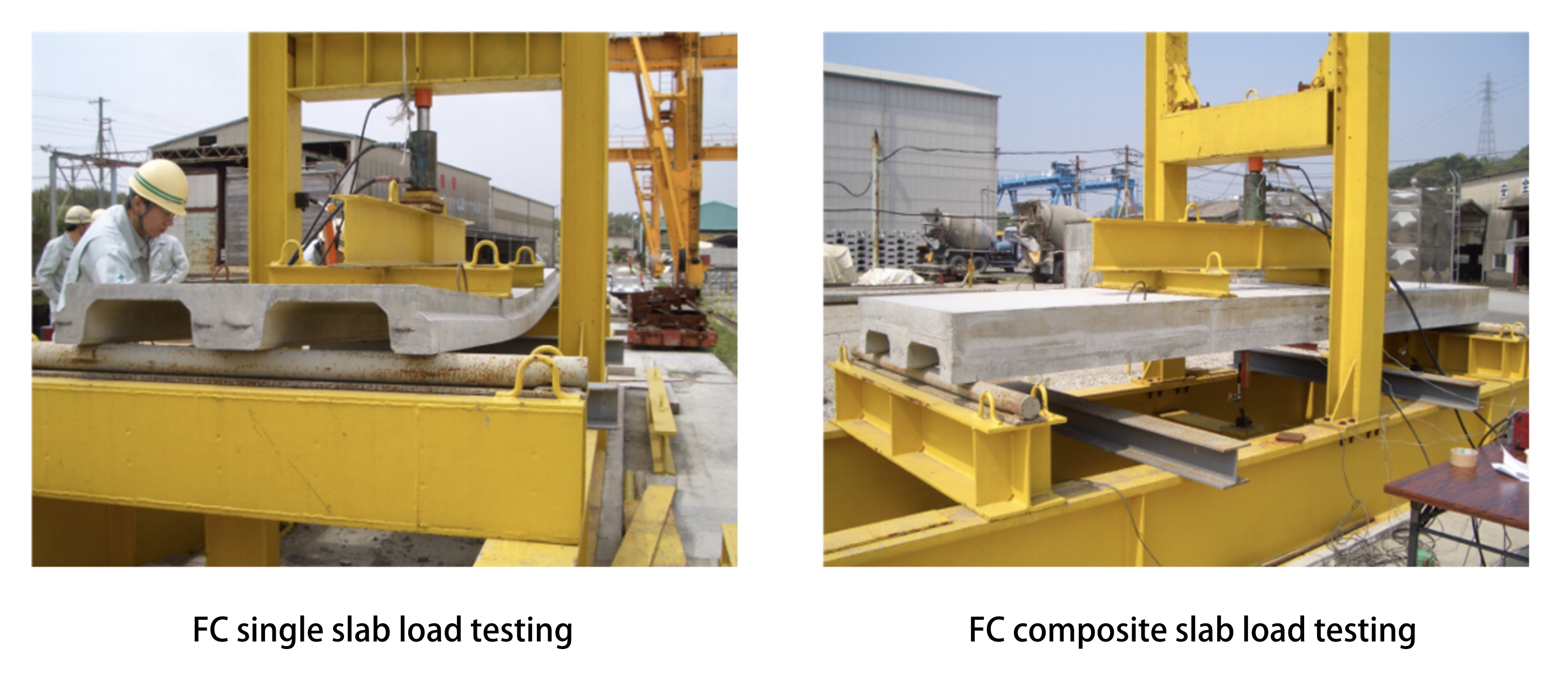

Performance testing
